ASTM A182 F310MoLN flange

Brand Name : HT

Model Number : ASTM A182 F310MoLN flange

Certification : ISO9001

Place of Origin : China

MOQ : 1 piece

Price : USD 100-100/piece

Payment Terms : Western Union, L/C, T/T

Supply Ability : 10000 pcs/quarter

Delivery Time : 30 days

Packaging Details : wooden case or wooden pallet

Type1 : ASTM A182 F310MoLN WN flange

Type2 : ASTM A182 F310MoLN blind flange

Type3 : ASTM A182 F310MoLN SW flange

Type4 : ASTM A182 F310MoLN SO flange

Contact Now

AISI 310MoLN (1.4466, S31050) Stainless Steel

AISI 310MoLN stainless steel is an alloy of iron, further classified as an austenitic stainless steel. It is typically furnished in the solution annealed (AT) condition. 310MoLN is the AISI designation for this material. 1.4466 is the EN numeric designation. S31050 is the UNS number. Additionally, the EN chemical designation is X1CrNiMoN25-22-2.

Material Properties

Base Metal Price46 % rel

Density7.9 g/cm3 (490 lb/ft3)

Elastic (Young's, Tensile) Modulus200 GPa (29 x 106 psi)

Electrical Conductivity2.2 % IACS

Electrical Resistivity Order of Magnitude-6 10x Ω-m

Elongation at Break46 %

Modulus of Resilience (Unit Resilience)210 kJ/m3

Poisson's Ratio0.28

PREN (Pitting Resistance)27

Specific Heat Capacity500 J/kg-K

Strength to Weight Ratio81 kN-m/kg

Tensile Strength: Ultimate (UTS)640 MPa (93 x 103 psi)

Tensile Strength: Yield (Proof)290 MPa (42 x 103 psi)

Thermal Conductivity14 W/m-K

Thermal Diffusivity3.5 m2/s

Thermal Expansion13 µm/m-K

Unit Rupture Work (Ultimate Resilience)240 MJ/m3

The length of each bar compares the given value to the highest value in the database.

Alloy Composition

Iron (Fe)45.2 to 53.8 %

Chromium (Cr)24 to 26 %

Nickel (Ni)20.5 to 23.5 %

Molybdenum (Mo)1.6 to 2.6 %

Manganese (Mn)0 to 2.0 %

Silicon (Si)0 to 0.5 %

Nitrogen (N)0.090 to 0.15 %

Phosphorus (P)0 to 0.030 %

Carbon (C)0 to 0.020 %

Sulfur (S)

We can provide 310MoLN material in the form of flange, fittings, pipes, fasteners.

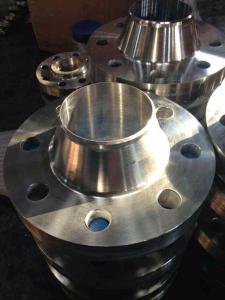

ASTM A182 F310MoLN flange
